Imjin War Reference IV - Artillery

Part IV of the collection is a survey of the various artillery systems employed by the Koreans. This includes the famous Hwacha (listed as the Shin-Ki Jeon from the Perry Miniatures site.)  and the Hwago artillery piece.
Hwa Cha from the Museum

The Hwacha is a bottle rocket launcher on steroids, essentially ripple firing long, explosive tipped arrows.
Hwa Ho and Hwa Cha

Hwa Go up close

The Hwago is a similar system but is more of an organ-gun with 50 short gun barrels loaded with three metal darts each.
Hwa Go from Jinjuseong fortress

Hwa Cha from Jinjuseong fortress

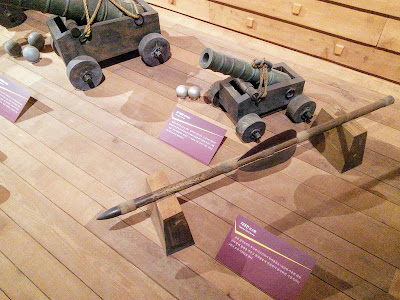

One of the interesting features of Korean cannon is the variety of projectiles.  Rather than just using stone or metal cannon balls, many fired a steel capped wooden dart. Cannon were used both on Korean war
A collection of Naval pieces in a mock-up of a Korean Warship.

Some of the Murals in the museum also depicted smaller guns being used in a battlefield role.  The Perry's do not produce anything in their range, but you could probably do a suitable substitution with their Korean crew and an appropriate European model from period.

Part of a mural depicting a fight between Korean garrison troops and the Japanese.  You can see a mix of artillery pieces.

Smaller field piece

Similar Rockets from Jinjuseong Fortress

Collection of pieces from Jinjuseong fortress museum.  Note the small mortar in the back.
Demonstration cannon from Suwon Palace grounds.

Finally, there were multiple examples of heavier artillery pieces from the various fortresses and later periods.
Display from the museum

More museum pieces

A later (18th -19th C?) howitzer
Gun display at Suwon fortress

The fields of fire have changed significantly since the 16th century.
